Home /  Products /  Earthmoving Machinery /  Crawler Excavator

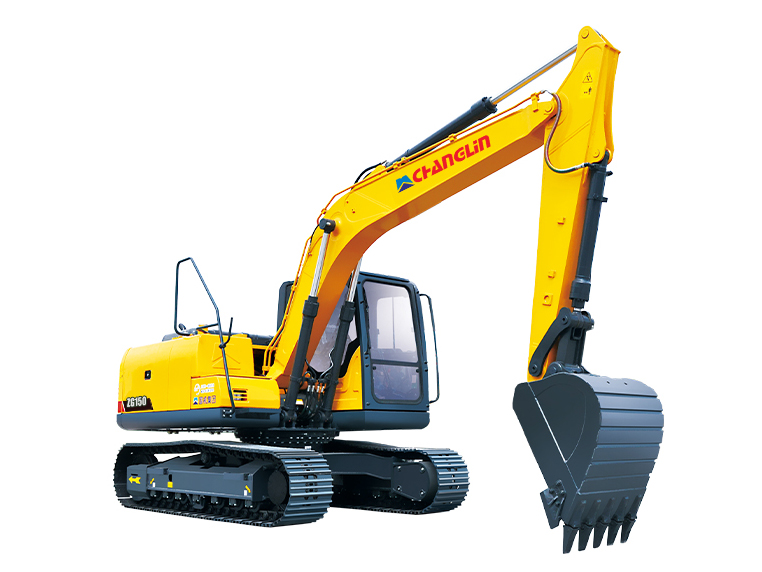

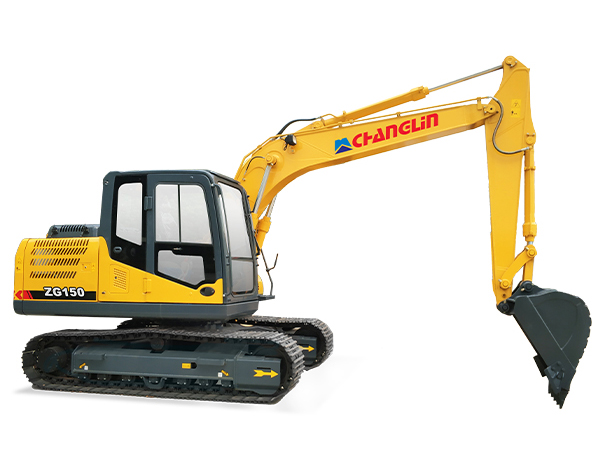

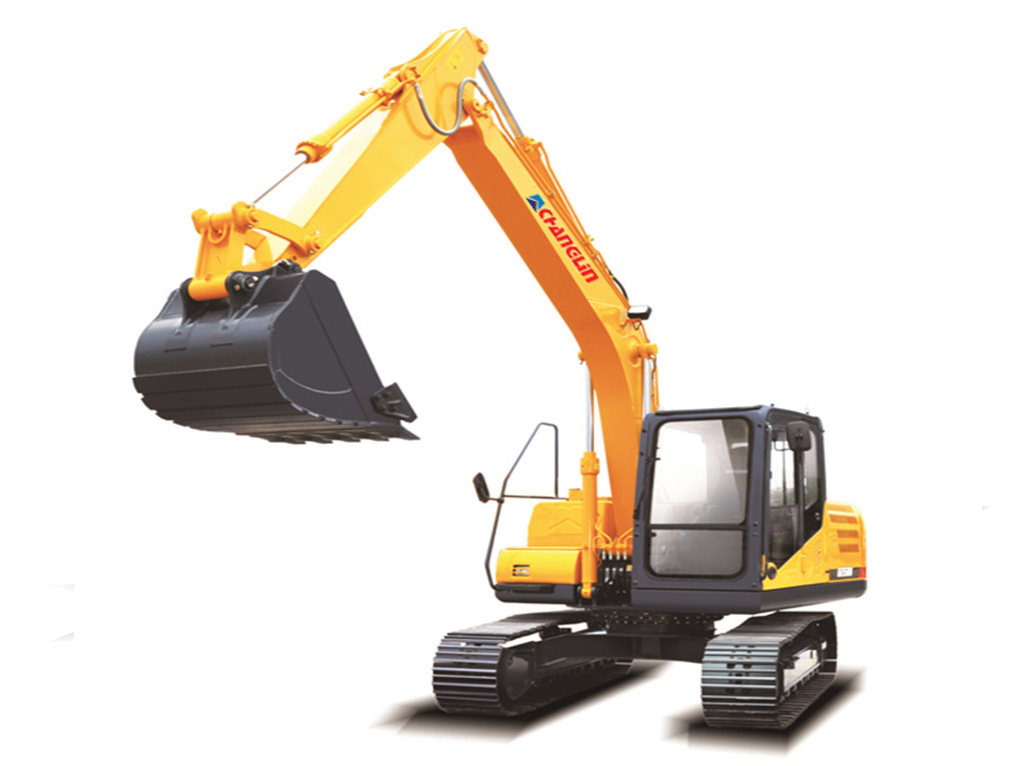

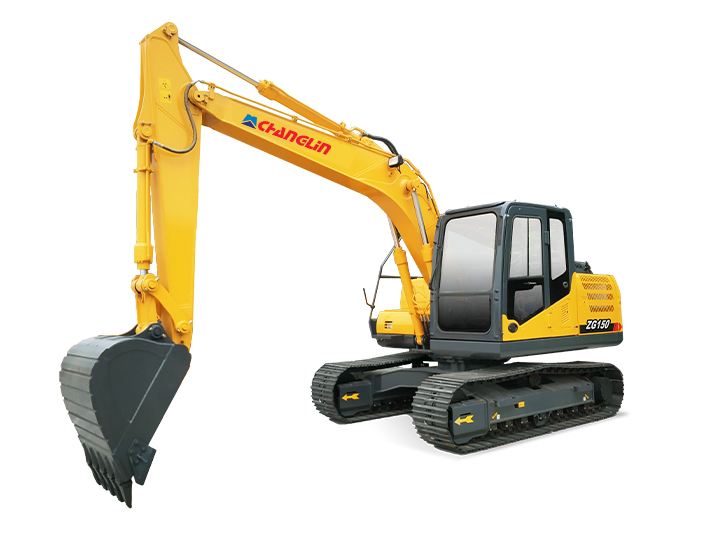

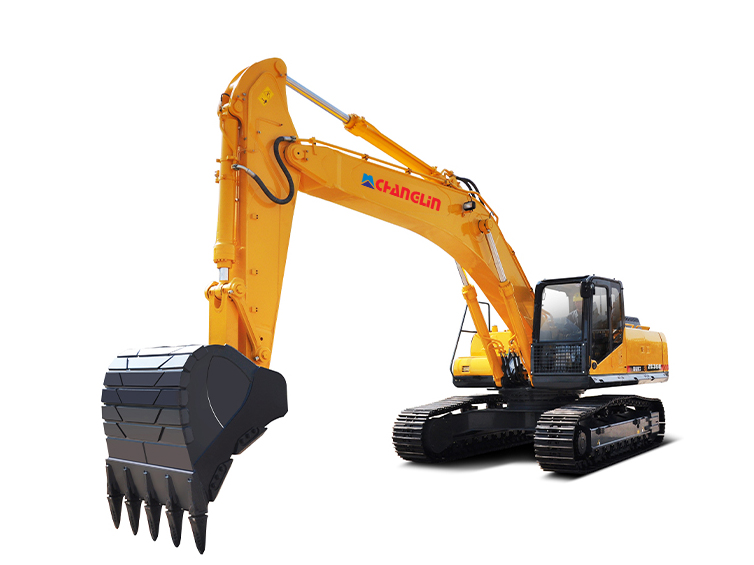

CHANGLIN ZG150 Crawler Excavator
Model:
ZG150
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
CHANGLIN
Dimension (mm):
4915*1720*2515
Operating Weight (kg):
13890
Origin:
Jiangsu, China
Min Order Quantity:
1
Delivery Time:
50 days
Summary
Drive Type:
Internal Combustion Drive
Bucket Capacity:
0.5~1.0m³
Place of origin:
China
HS Code:
8429590000
Specifications
Max. traction:
122 KN
Swing speed:
13 rpm
Maximum digging radius:
8335 mm
Ground maximum digging depth:
5288 mm
Packaging & Shipping
Delivery Lead Time:
7 days for ready goods
Minimum Order:
1
Supply Ability:
10,000 Set/ Sets per Month
Total Quantity In Stock:
Over 5000
Delivery Port:
Any Port In China
Details
Dimensions Operating weight Kg 13890
Rated bucket capacity m3 0.6
Overall length mm 7762
Overall width(600mm track shoe) mm 2510
 Overall height mm 2983
Trunable width mm 2510
Cabin height mm 2825
Groundclearance of counterweight mm 915
Engine cover height mm 2243
Min. ground clearance mm 416
Tail length mm 3205
Turning radius of turnable mm 2306
 Wheel base of track shoe mm 4030
Chassis length mm 3010
Chassis width mm 2490
Track shoe gauge mm 1990
Standard track shoe width mm 500
Performance Max. traction KN 122
Travelling speed (H/L) Km/hr 5.9/3.4
Swing speed rpm 13
Gradeability Degree(%) 35(70%)
Ground pressure Kgf/cm2 0.423
Working
Range
Maximum digging radius mm 8335
Ground maximum digging radius  mm 8203
Maximum digging depth mm 5491
Ground maximum digging depth mm 5288
Maximum vertical digging depth mm 4826
Maximum digging height mm 8679
Maximum dumping height mm 6174
Min. front turning radius mm 2605
Bucket digging force kN 100
Stick digging force kN 68
Engine  Model   Cummins    QSF3.8-C115
Type   4-cylinder in-line, four-stroke turbocharger
Emission   Tier III
 Displacement L 3.76
Rated power   86KW(115PS)@2220RPM
Max. torque N.m 470N.m@1400rpm
Company Details

Packing & Shipping

40‘ HQ Container
Flat Rack Container
RoRo Shipment
Bulk Shipment
Road Transportation
Railway Transportation

Our Advantages

Professional Team
Rich Experience

Stable and Strong
Supports From Factory

24 Hours Online
Quick Response

Guaranteed Quality

Powerful One-Stop
Service Ability

Over 100+ Top
Brands to Choose

Good Company
Reputation

Competitive Price

Our Factories

We have the largest-size factories for truck & special vehicle and industrial equipment in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production.
We cooperate with our factories to attend numerous exhibitions either in China or overseas, such as Canton Fair in Guangzhou, BAUMA CHINA in Shanghai, BICES in Beijing, etc.
Our factories are mainly located in Shandong, Shaanxi, Hubei provinces, convenient for travel by airplane, high-speed train and car within 2-3 hours from Shanghai. Welcome to start a wonderful journey with us in China.

Successful Cases

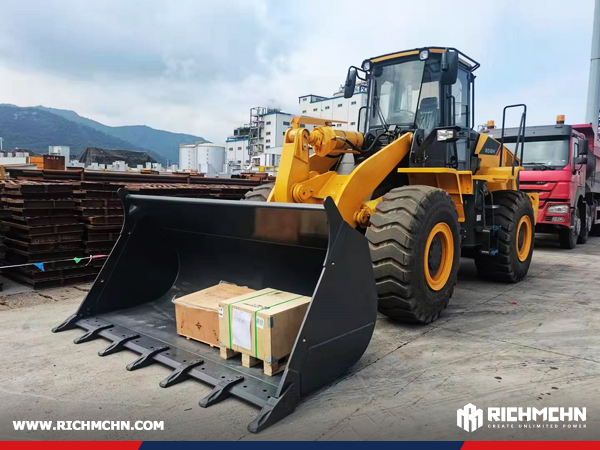

North Macedonia - 1 Unit LIUGONG CLG856H Wheel Loader
Nigeria - 1 Unit XCMG XP203 Road Roller
Saudi Arabia - 1 Unit ZOOMLION ZTC1300VS763-1 Truck Crane

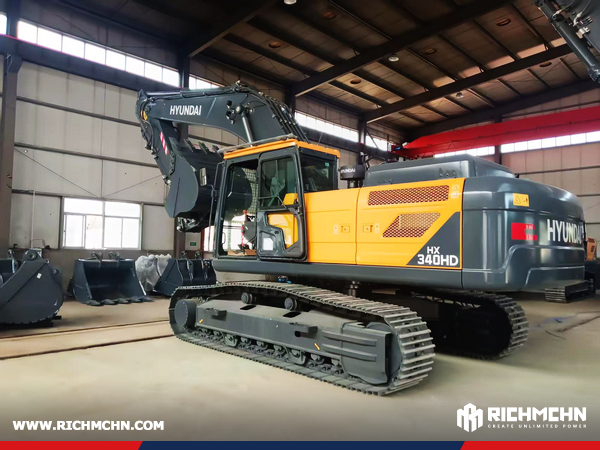

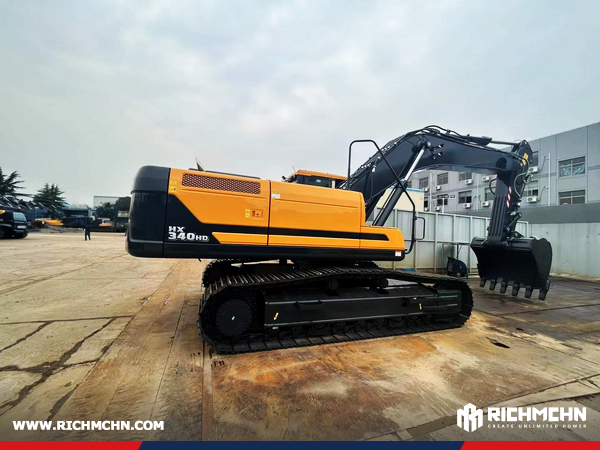

Algeria - 1 Unit HYUNDAI HX340HD Crawler Excavator
Algeria - 4 Units XCMG ZL50GN Wheel Loaders
Canada - 2 Units HYUNDAI HL665XL Wheel Loaders
Central African Republic -1 Unit XCMG XC740K Skid Steer Loader
Guam - 3 Units HELI G3 CPCD50-KU4G3 Diesel Forklifts
Chile - 2 Units CAT 326GC Crawler Excavators
Poland - 11 Units HELI CDD15J Electric Pallet Stackers
Poland - 2 Units HELI CPD35-GB2LI-M Electric Forklifts
Algeria - 1 Unit HYUNDAI HX340HD Crawler Excavator

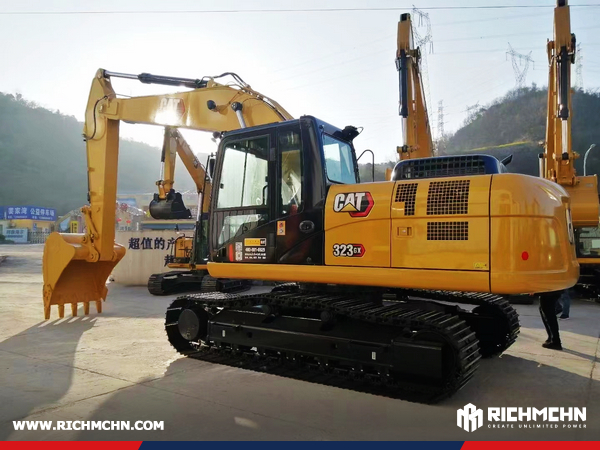

Cameroon - 1 Unit CAT 323GX Crrawler Excavator
